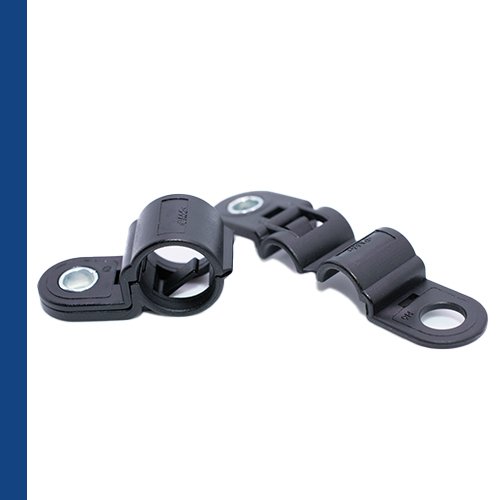

Clip PA66 for convoluted tubing Ø10/13, metal insert M6.5, smooth
Ref: 1017299Smooth clips with insert are injected parts designed to ensure the fixation of the textile sleeving or harness on the car body. Before starting the installation of the accessory, make sure to choose the suitable size, shape and profile to your application. The compatibility between the accessory and profile of the convoluted tubing has to be checked before assembly. RoHS directives compliant.
12.81 €Including taxes
Unit price exl. tax 1.05 €
Out of stock
Category
Fastening Accessories
Color
Material
Polyamide 66
Production method
Injection
| Temperature (min.) | -40 °C |
| Temperature (max.) | 135 °C |
| Hole diameter | 6.5 mm - 6.5 mm |
| Length | 41 mm |
| Width | 18 mm |
| Weight (per unit) | 4.6 g |
| Inner surface | smooth, with spring element |
| Plug socket slide-in | No |
| Thread | M6 |
Wire Routing & Fastening
Construction
Agricultural equipment
Machinery & Installation
Renewable energies
Railway| Common Picture | |
| Detailed Picture |
Variants
| Article Id |
|---|
1017299 |
| 1017334 |
| 1017333 |
| 1017302 |
| 1017301 |
| 1017303 |
